Introduction

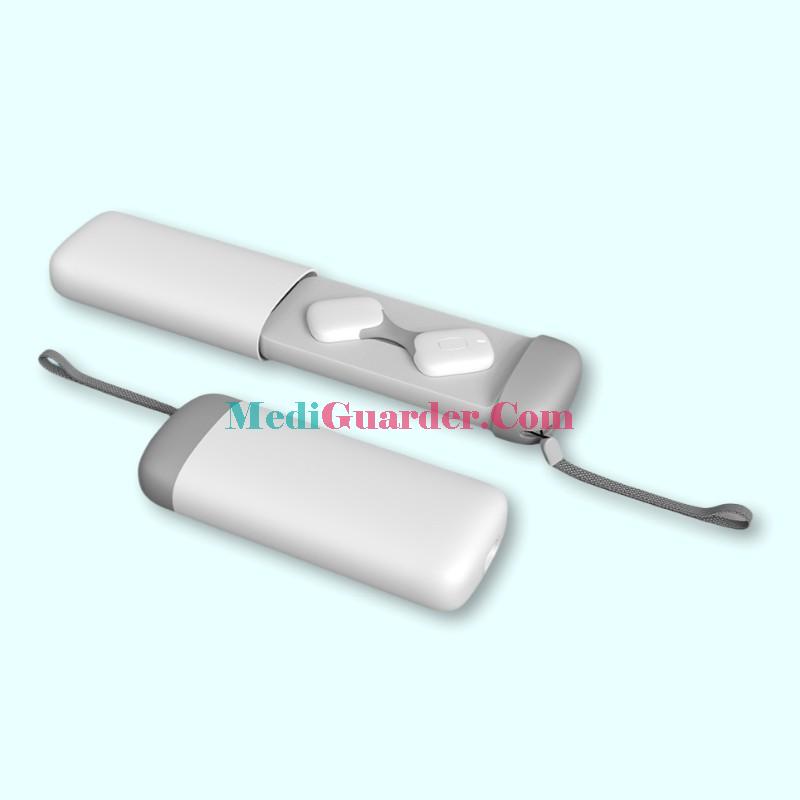

The bluetooth ECG patch is a compact and portable device designed for monitoring electrocardiogram (ECG) and heart rate. With a novel design, it is lightweight and small – sized, making it easy to carry around. It can be worn on the chest for up to 24 hours, effectively monitoring and recording ECG and heart rate. The operation is simple. The bluetooth ECG patch uses professional sensors placed on the body surface, which are connected to four electrodes of the device. According to the time sequence of cardiac excitation, it records the potential difference between the detection points on the body surface. After wearing the product as required, the ECG sensor collects human biological signals (ECG and heart rate), which are then sent to the App software for display or storage in real – time through data processing. The software displays the relevant recorded waveform data on the App interface based on the original data transmitted in real – time via Bluetooth. The bluetooth ECG patch is applicable to scenarios such as hospitals, clinics, nursing homes, communities, pharmacies, physical examination centers, and home use. The standard configuration includes 1 main unit, 1 box of sensors, 1 charging box, 1 USB cable, and 1 instruction manual.
Features
- Health Management App: After users register and log in, they can edit and set personal information, add and replace devices via Bluetooth. The client will update data in real – time, provide historical measurement records of the same user, and assist users in obtaining health status information through health trend charts and diet record functions.
- Bluetooth Wireless Transmission: The bluetooth ECG patch supports wireless data transmission, which is convenient and efficient.
- Waterproof Design: The bluetooth ECG patch is made of waterproof materials, it is an adhesive single – lead electrocardiogram recorder, ensuring worry – free use.
- Rechargeable Battery and Dedicated Charging Dock: The bluetooth ECG patch is equipped with a rechargeable battery and a dedicated and safe charging dock, a large – capacity charging box is standard – configured for easy storage and charging. Before using the heart rate patch for the first time, charge it with the charging box. During the charging process, the blue indicator light on the heart rate patch turns on. When the indicator light turns green, it indicates that the battery is fully charged.
- Scientific Wearing Method: When wearing the bluetooth ECG patch, the positive electrode should point towards the heart. The side with the button of the heart rate patch is the negative electrode, and the side with the charging pins is the positive electrode. Stick the positive electrode at a position close to the heart, and the negative electrode at a position away from the heart. After confirming the positive and negative electrodes, try to choose a body part with uniform tissue transition for pasting to ensure the stability of signal collection. The specific position may vary depending on the body’s fatness or thinness, shoulder width. The following are several basic illustrated wearing methods.
Parameters
- Product Name: Bluetooth ECG Patch
- Standard Sensitivity: 10mm/mV, ±10%
- Sampling Rate: 250Hz
- Internal Noise: ≤25μV (peak – to – valley value)
- Input Impedance: ≥50MΩ
- Common – Mode Rejection Ratio: ≥100dB
- Frequency Response: 0.5Hz – 40Hz
- Heart Rate: Measurement range: 30bpm – 300bpm; the error should be ±2% or ±2bpm, whichever is larger
- Battery: 3.7V rechargeable lithium – ion battery, 70mAh
- Input Power: 5VA
- Product Dimensions: Charging box size: approximately 145x60x30mm; Heart rate patch size: approximately 89x35x8mm
- Weight: Approximately 137g
- Charging Method: Dedicated and safe charging dock
- Bluetooth Transmission: Equipped with Bluetooth transmission function
- Battery Life: When powered by a fully – charged brand – new lithium – ion battery, continuous ECG detection can last for more than 50 hours
- Service Life: 3 years
