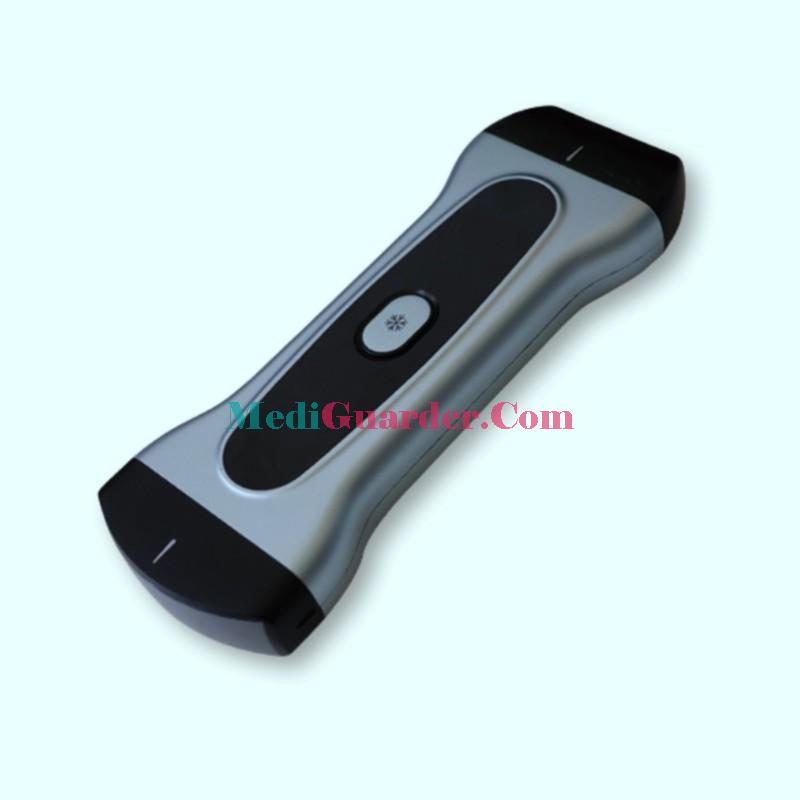

Handheld Ultrasound B-scanner,Wireless Portable Color Ultrasound Imaging Diagnostic Instrument

Introduction

The handheld ultrasound B-scanner, also known as the wireless portable color Doppler ultrasound imaging diagnostic instrument, is an innovative medical diagnostic device. It integrates the core functions of traditional large-scale ultrasound diagnostic equipment into a lightweight and portable handheld device. The PIU2A-PIU2B model is delicate and compact, about the size of a pocket and lightweight, making it easy to handle and transport. The handheld ultrasound B-scanner has strong usability in various environments, such as emergency situations and point-of-care scenarios.

It features an advanced waterproof design and a high-end wireless fast charging tray. With the harmonic imaging technology, it is equipped with a combined linear, convex, and phased array probe, and the operating frequency ranges from 2.5 to 12 MHz, which can provide high-quality images. It can examine multiple parts including the abdomen, gynecology, obstetrics, urology, thyroid, carotid artery, cardiac function, pulsed Doppler, kidneys, color Doppler, liver, and heart. The handheld ultrasound B-scanner is applicable to a variety of scenarios such as primary care, Doctors Without Borders in emergency situations, veterinary medicine, medical schools, obstetrics, anesthesia and health, pain management, gyms, breast examinations, global health, and clinical research.

Features

• Waterproof and Durable: With an IPX7 waterproof rating, it ensures excellent durability under various conditions.
• Convenient Charging: The handheld ultrasound B-scanner supports wireless charging, which is convenient and durable. An optional charging case is available for easy carrying.
• System Compatibility: The handheld ultrasound B-scanner is compatible with Android, IOS, and Windows systems.
• Advantages in Mobility and Operation: The handheld ultrasound B-scanner is easy to move and operate, with reliable quality, and can fully meet the needs of a variety of clinical applications.

Parameters

• Product Name :Handheld Ultrasound B-scanner/Wireless Doppler Portable Color Ultrasound Imaging Diagnostic Instrument
• Elements: 128
• Gain Control: 8-segment TGC and total gain are adjustable, with a gain range of 1-100%.
• Dynamic Range: 36-120
• Speckle Reduction: On/Off
• Battery: Removable large-capacity lithium battery
• Display Modes: B mode, CF mode, M mode, PW mode, power Doppler imaging, directional power, color M mode of Doppler imaging, needle enhancement mode
• Scanning Angle/Length: Convex array 60 degrees, linear array 40 mm, phased array 90 degrees
• Frequency: Convex array 2.5-6.0 MHz, linear array 5.0-12.0 MHz, phased array 2.5-6.0 MHz
• Image Adjustment: Gain, depth, frequency, dynamic range, focus, image enhancement, biopsy, automatic optimization, spatial compound imaging, despeckle imaging, color quantization, fine angle steering, tissue harmonic imaging, pulse inversion harmonic imaging
• Measurement Functions: It can measure length, area, speed, heart rate, S/D, velocity, obstetrics parameters, and automatic blood flow.
