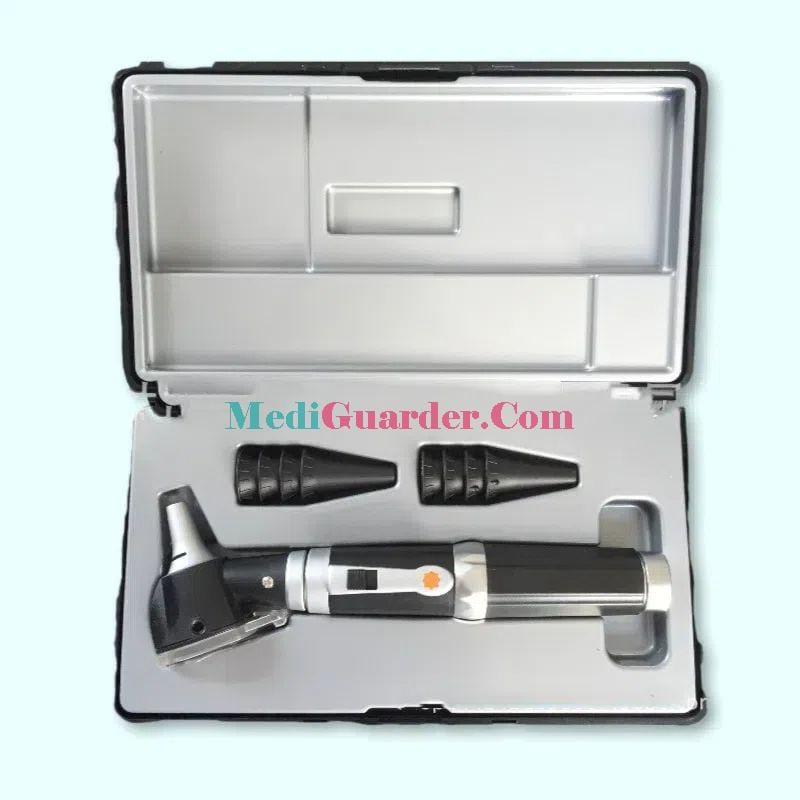

Medical Fiber – Optic Otoscope,Multi – functional Ear Canal Examination Device

Introduction

The medical fiber – optic otoscope is a multi – functional ear canal examination device, covering models such as OT10, OT10D, and OT10G. It can directly observe the hyperplasia of endothelial cells in the ear canal, the color and quantity of earwax, and the presence of polyps, etc. This helps doctors assess the severity of ear canal diseases and formulate treatment plans based on the examination results. The otoscope has an exquisite design, perfectly integrating technology and art. The medical fiber – optic otoscope adopts a sealed precision optical pivot, with triple magnification function, which can provide a clear and good view. Its hygienic ear – fixed socket speculum made of wear – resistant metal is compatible with the electronic L2 speculum and ear dilators produced by other well – known manufacturers, and performs excellently in pneumatic tests (no joints and smooth air supply). The fiber – optic length is 4 – 5cm, which conducts light based on the principle of total internal reflection of light in glass or plastic fibers. The OT10D large – window fiber – optic model is equipped with 8 ear sleeves, divided into four specifications of 2.4mm, 3mm, 4mm, and 5mm, with 2 of each specification. The product includes a standard fiber – optic otoscope and a simple otoscope. The three models can meet the different needs of users from infants to adults, and the packaging is exquisite with complete accessories. The components include an LED bulb, a handle, four – specification (two sets each) ear sleeves, and two AA batteries. The packaging materials include a plastic gift box, a color box, and an instruction manual.

Features

• High – Brightness Illumination: Presents the true tissue color for accurate observation.
• High – Quality Observation System: The 3 – times magnifying lens provides a wide – angle view, and the lens can be rotated.
• Good Ear – Sleeve Adaptability: Ear sleeves with four diameters of 2.4mm, 3mm, 4mm, and 5mm are suitable for ear canals of different sizes.
• Advanced Illumination System: The fiber – optic illumination system has extremely low conduction loss, uniform illumination without reflection, and the illumination components do not block the field of view.
• Unique Configuration: Only the OT10D can be equipped with an ear – drum airbag. The medical fiber – optic otoscope adopts fiber – optic conduction technology and is upgraded to a large – window viewing window.

Disinfection Methods

• Ear Sleeves: Disinfected by high – temperature steam at 134 °C.
• Product: Wipe the surface of the instrument with 75% alcohol for disinfection. Pay attention to avoiding the otoscope head. Do not touch the magnifying lens with hands or other hard objects. Soaking, high – pressure steaming, or allowing solutions to penetrate into the interior of the instrument are prohibited.

Parameters

• Name: Fiber – Optic Otoscope
• Models: OT10, OT10D, OT10G
• Types: Fiber – Optic Otoscope (Regular Window), Fiber – Optic Otoscope (Large Window), Regular Otoscope (Traditional)
• Bulb Type: LED
• Voltage: 3V
• Yellow Light: 3200k
• White Light: 6000K
