Medical Portable EEG Instrument,EEG Machine,Medical EEG Instrument

Introduction

The medical portable EGG instrument is a medical device used for monitoring and recording the electrical activity of the brain, mainly applied in the diagnosis and research of nervous system diseases. The medical portable EGG instrument is a mobile medical device for monitoring the electrical activity of the brain.

In terms of device composition, it consists of electrodes, a signal acquisition module, a data storage unit, and analysis software. The electrodes are attached to the scalp to collect EEG signals. After being processed by the acquisition module, the signals are saved in the storage unit, and finally, the data is interpreted through the analysis software.

In clinical applications, the medical portable EEG instrument is mainly used for the diagnosis and monitoring of epilepsy, assisting in determining the type of epileptic seizures, the location of lesions, etc. It is also suitable for the assessment of sleep disorders, analyzing sleep structure and quality. Additionally, it can be used for evaluating brain functions in diseases such as brain trauma and brain tumors.

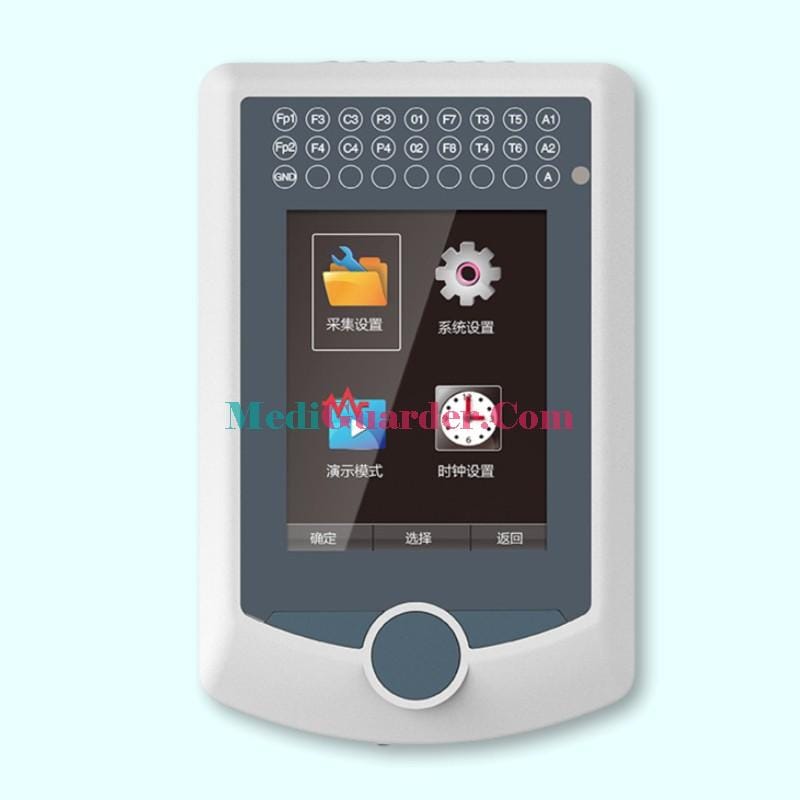

The CMS4100 EEG instrument is a sophisticated medical device designed for electroencephalogram monitoring. Comprising a record box and analysis software, it offers seamless operation. The record box features an intuitive interface, enabling 16 – channel EEG waveform sync sampling on an SD card and continuous recording for up to 24 hours, with replay functionality. The analysis software has a clear interface, allowing for easy replay and analysis of stored EEG waveforms.

Features

• Advanced Technology Integration: The medical portable EEG instrument utilizes SMD technology to integrate sampling, magnification, filtering, and A/D transformation, ensuring strong anti – interference capabilities.
• Portable and Convenient: It allows 24 – hour carry – around recording, enabling normal activities during monitoring to capture hidden pathologic moments. Bluetooth sync sampling and real – time data upload are also available, along with an optional routine EEG sampling function.
• Versatile Waveform Manipulation: Offers waveform playback with adjustable amplitude and speed, and flexible lead mode settings. It also supports case contrasting for in – depth analysis.
• Customizable System: System parameters can be tailored to meet various user needs. The EEG instrument clippings function aids in detailed waveform analysis and parameter extraction.
• Comprehensive Analysis Tools: Multiple EEG power spectrum analysis methods, along with a spike – sharp wave auto – analysis system, provide in – depth data statistics and pathologic wave trend charts.
• Efficient Case Management: The medical portable EEG  instrument enables easy search, statistics, export, and import of case files, which can be converted to the standard EDF format for seamless data exchange.
• Powerful Filter and Measurement: A multifunctional digital filter system and convenient waveform measurement tools with marking and annotation features enhance analysis accuracy.
• Stable Data Transmission: The USB interface ensures fast and reliable data transmission.

Parameters

• Product Name:Portable EEG Instrument/EEG Machine/Medical EEG Instrument
• Model: CMS4100
• Purpose: Recording and analyzing electroencephalogram (EEG) waveforms
• Weight: Approximately 300g (including one battery)
• Dimensions: 127 (Length) × 80.5 (Width) × 35.6 (Height) mm
