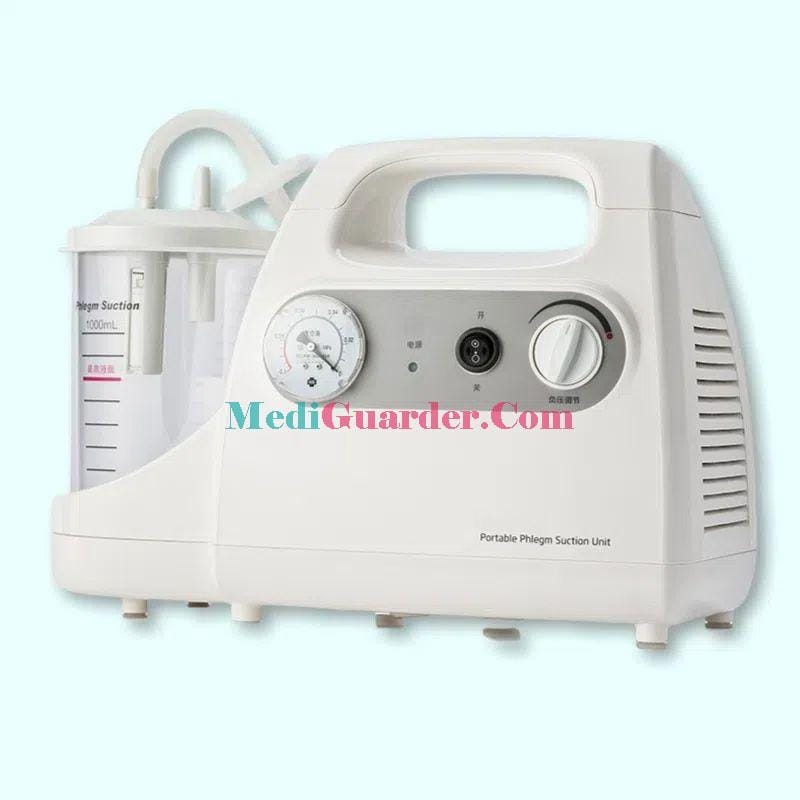

Portable Electric Sputum Suction Apparatus, Handheld Phlegm Suction Unit

Introduction

The 7E-A portable electric sputum suction apparatus is a multifunctional sputum suction device suitable for both hospitals and households, specifically designed for the elderly and patients. It adopts the technology of an oil-free lubricated negative pressure pump and is composed of a piston pump, a casing, a liquid storage bottle, a vacuum gauge, an air filter, a suction pipeline, etc. This product is a medical device for emergency rooms, operating rooms, ward monitoring, and home care. The portable electric sputum suction apparatus can effectively solve the problem of sputum suction and help patients to quickly remove sputum and achieve smooth breathing.

Features

• Powerful Core and Environmentally Friendly Design: The main unit is equipped with an oil-free piston pump, which not only runs powerfully and requires long-term maintenance-free operation but also prevents the environment from being polluted by oil mist and extends the effective working time of the machine.
• Low Noise Operation: With a built-in silencer and multiple noise reduction technologies, the noise is controlled within ≤65dB(A), creating a quiet and comfortable environment.
• Large-capacity Liquid Storage and Novel Design: The portable electric sputum suction apparatus has a large-capacity 1000ML hidden and embedded liquid storage bottle. There is a red scale line as a warning (the liquid should not exceed 800mL). It adopts a circular negative pressure gauge and an all-plastic casing design.
• Portable and Lightweight: The portable electric sputum suction apparatus is small in size (280x196x285MM) and light in weight (4KG), equipped with an integrated portable handle, which is convenient for outdoor medical rounds, emergency rescue, and daily use.
• Safe and Efficient Sputum Suction: The high negative pressure and low flow rate design protects the laryngeal mucosa. The circular negative pressure vacuum gauge can intuitively display the negative pressure value, and the negative pressure can be adjusted steplessly. When the negative pressure is too high, it can be adjusted to an appropriate level through the negative pressure regulating valve. The portable electric sputum suction apparatus is equipped with a one-touch smooth switch and a pressure indicator, making the operation simple.

Parameters

• Product Name: Portable Electric Sputum Suction Apparatus
• Input Power: 90VA
• Ultimate Negative Pressure Value: ≥0.06MPA
• Noise: ≤65DB(A)
• Net Weight: 4KG
• Air Extraction Rate: ≥15L/MIN
• Ambient Temperature Range: +5°C ~ +40°C
• Relative Humidity Range: 30% ~ 80%
• Power Supply: AC220V, 50HZ
• Liquid Storage Bottle: 1000ML, one piece
• Atmospheric Pressure Range: 860HPA ~ 1060HPA
• Negative Pressure Adjustment Range: 0.02MPA to the ultimate negative pressure value
• Fuse Tube: F1.5AL250V, 5X20
• External Dimensions: 280x196x285(MM)

Precautions

• Prevent Electric Shock Risk: Disconnect the power immediately after use; if the machine falls into water, cut off the power first; do not place it in areas prone to water dripping; do not touch it when it is wet; do not disassemble it by yourself and regularly check the electrical safety indicators.
