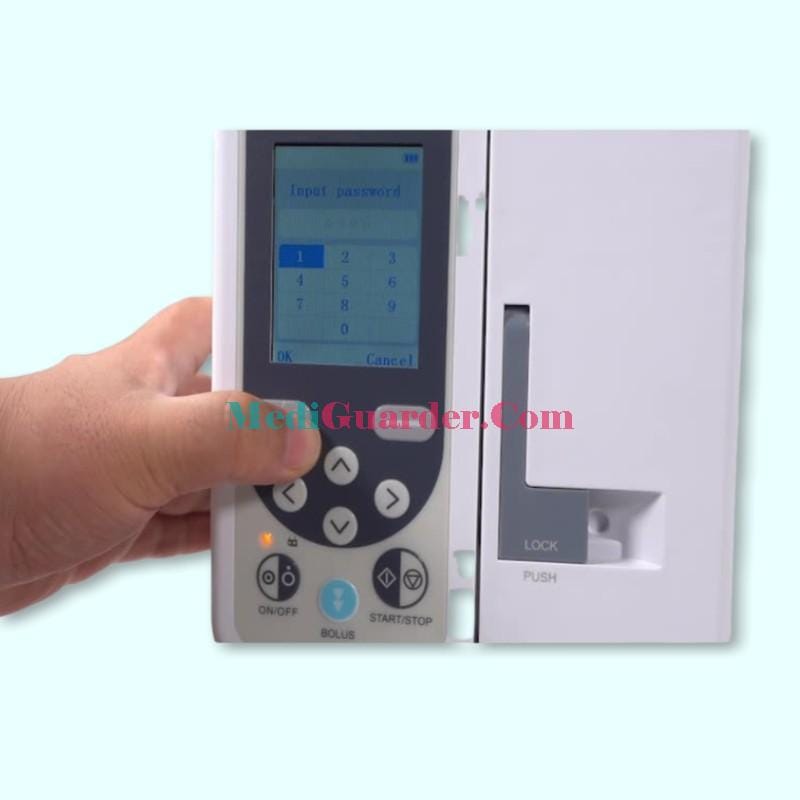

Volumetric Infusion Pump SP750, Intravenous Infusion Set

Introduction

The volumetric infusion pump is an advanced infusion device, mainly characterized by its ability to accurately control the infusion volume. It precisely controls the operation of the motor through a microprocessor, thereby driving the infusion device to deliver medicinal liquids at the set speed and volume. This infusion pump has multiple functions, such as setting the infusion speed and total volume, and various alarm functions (including air bubble alarm, occlusion alarm, infusion completion alarm, etc.). The volumetric infusion pump is also compatible with infusion sets of different brands and specifications. It is suitable for various departments in hospitals, especially in places with extremely high requirements for infusion accuracy and safety, such as operating rooms and intensive care units.

The SP750 is a volumetric infusion pump designed with a focus on high safety, ease of operation, and long – term usability. Its precise flow control and comprehensive alarm system safeguard patients and contribute to optimal treatment outcomes.

Features

• Compatibility & Calibration: Compatible with various IV set brands and allows calibration of new ones for accurate infusion.
• Display & Reminder: A 2.8″ TFT LCD shows real – time parameters, and it has an infusion reminder. Parameters can be saved after shutdown.
• Sensor & Safety: Equipped with a 0.02ml high – accuracy ultrasonic sensor. Prevents liquid free – flow when the door opens and has multiple alarms. Also, it has a KVO function, purging ability, and adjustable occlusion threshold.
• Power Supply: Offers intelligent dual – way power supply, via AC or a built – in high – capacity lithium battery.
• Safety Measures: Special safeguards include an IV – set clamp, high – accuracy air bubble detector, pressure sensor, A.B.S system, and password protection for infusion parameters.

Parameters

• Product Name: Volumetric Infusion Pump
• Rate & Volume: Infusion rate 1 – 699ml/h (1mL/h increment), total volume 1 – 9999ml (1ml increment)
• Accuracy: ±5% (with calibrated IV set)
• Display: Shows flow rate, total volume, etc.
• Class: Class I type BF applied part, internally powered
• Waterproof: IPX2
• Mode: Continuous working
• Alarms: Multiple alarm functions
• Detector: Ultrasonic air bubble detector
• Screen: 2.8″ TFT
• KVO Rate: 1ml/h
• Sensor: Pressure sensor with 1 – 3 adjustable sensitivity grades
• Power: AC220V, 50/60Hz; 7.4V/5000mAh rechargeable Li – polymer battery
• Size & Weight: Dimension 143.6mm(L)×151.8mm(W)×195.3mm(H), weight about 1.9kg
• Accessories: A power cord and a user manual
