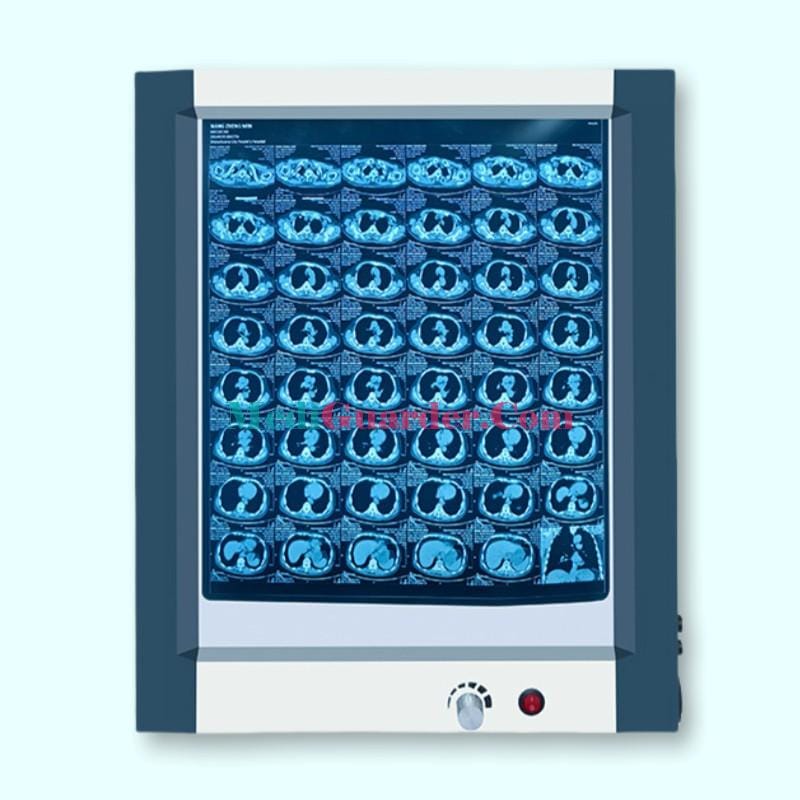

LED Ultra-thin Film Viewer, X-ray Film Viewer

Introduction

The LED ultra-thin film viewer comes in various styles, including single-unit, double-unit, triple-unit, and quadruple-unit models. The X-ray film viewer is specifically designed to clearly display X-ray film images and is widely used in medical scenarios such as orthopedics departments, operating rooms, photography rooms, dental clinics, and general clinics.

Its core component is the imported medical-grade LED light source from Osram in Germany. Utilizing the patented point light source matrix technology, it forms tens of thousands of point light sources, ensuring high brightness (maximum brightness ≥ 4000cd/m², minimum brightness ≤ 300cd/m²), no brightness decay, and true color reproduction.

The X-ray film viewer achieves uniform diffuse reflection of light through the acrylic panel, with high light transmittance, making it convenient to view the details of the images. The aluminum alloy frame is sturdy and durable. The needle roller clip device features a scientific structure, with firm clamping and flexible film removal. The rotary button of the X-ray film viewer allows for free adjustment of the brightness to meet different brightness requirements.

Features

• Stable Illumination: The X-ray film viewer adopts a constant current drive power supply, providing uniform light, high brightness, good stability, and a long service life.
• Convenient Installation: With an aluminum alloy base, the film viewer can be either wall-mounted or stand-mounted, and the installation is simple.
• Easy Operation: The integrated design of the power switch, induction control, and stepless dimming makes the operation convenient.
• Film Protection: The silicone clip device enables easy insertion and removal of films without scratching them, and the films will not fall off even after long-term use.
• High-quality Materials: The back panel of X-ray film viewer is made of high-quality steel plate, with a reasonably designed wall-mounted hole, ensuring safety and firmness.

Usage Precautions

• Handle with care during transportation and avoid collisions.
• Keep the usage environment dry to prevent moisture, which may cause electric leakage.
• If there is a malfunction in the electrical part, it must be repaired by an electrician or a professional.
• Cut off the power supply if it is not used for a long time.
• Keep the surface of the viewer clean during use.

Parameters

• Product Name: X-ray Film Viewer /LED Ultra-thin Film Viewer
• Model Numbers: LCT-A, LCT-B, LCT-C, LCT-D
• Frame Material: Aluminum alloy
• Screen Brightness Adjustment Range: 0 – 4000CD/M²
• Power: 25W, 50W, 75W, 100W
• Power Supply Voltage: AC220V/50HZ (AC100 – 240V 50/60Hz can be customized)
• Installation Method: Wall-mounted or stand-mounted
• Appearance and Screen Dimensions:
• Single-unit model: Appearance dimensions (height 575MM, width 472MM, thickness 24MM), screen dimensions (height 456MM, width 361MM)
• Double-unit model: Appearance dimensions (height 575MM, width 832MM, thickness 24MM), screen dimensions (height 456MM, width 721MM)
• Triple-unit model: Appearance dimensions (height 575MM, width 1192MM, thickness 24MM), screen dimensions (height 456MM, width 1082MM)
• Quadruple-unit model: Appearance dimensions (height 575MM, width 1552MM, thickness 24MM), screen dimensions (height 456MM, width 1442MM)
• Brightness Adjustment: Stepless dimming configuration is optional.
• Light Source Type: Imported medical-grade LED light source from Osram in Germany
